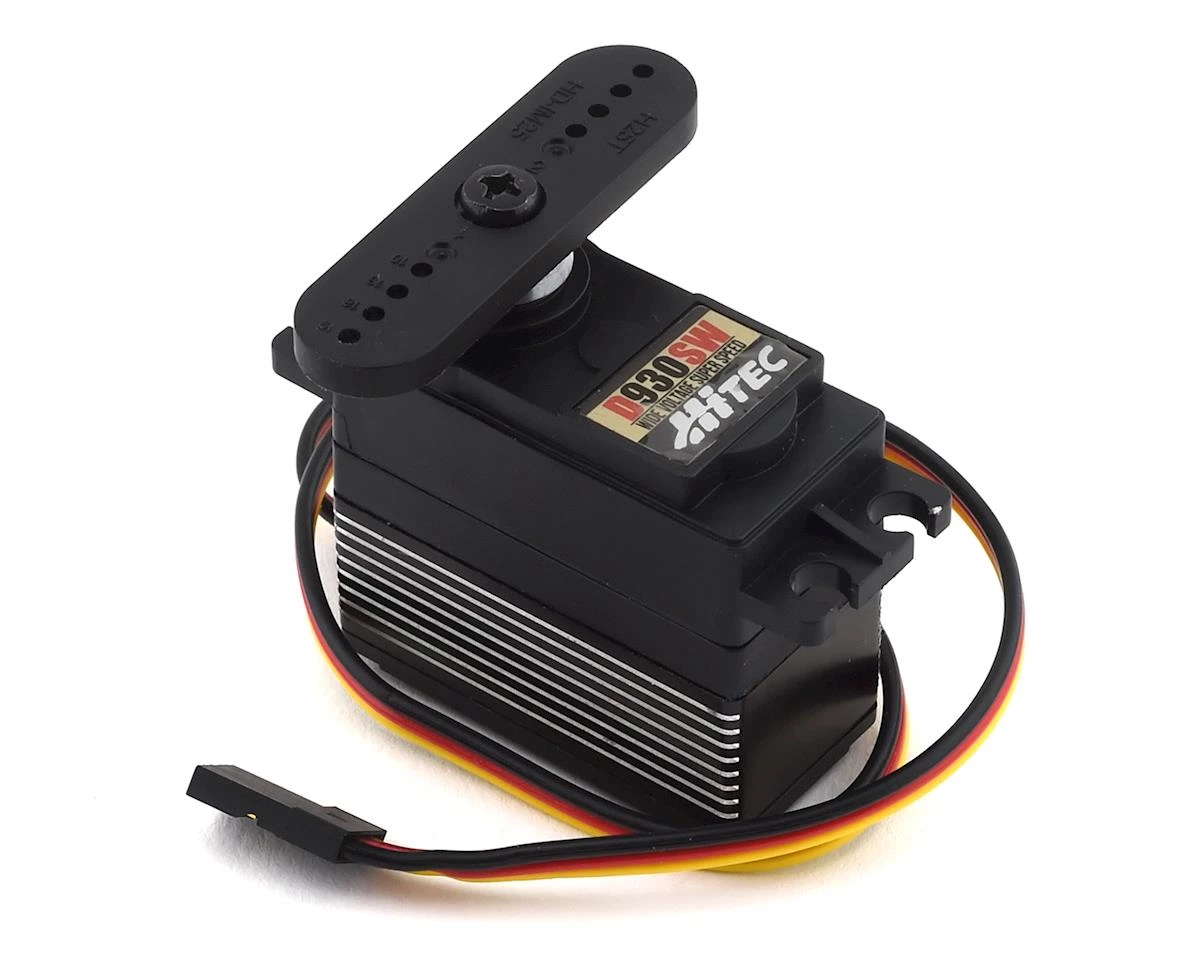

Hitec D930SW Ultra Torque Titanium Gear Digital Servo (High Voltage)

This is a Hitec High Voltage D930SW Ultra Torque Titanium Gear Digital Servo, a technologically-advanced servo that is powered by Hitec 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. This products unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW is the perfect upgrade from Hitec’s popular HS-8330SH servo.

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save/Load
• Program Reset

• 3 Steel Alloy Gears Set | Link |
• Metal/Karbonite 1st Gear Set | Link |
• Plastic/Aluminum Case Set | Link |

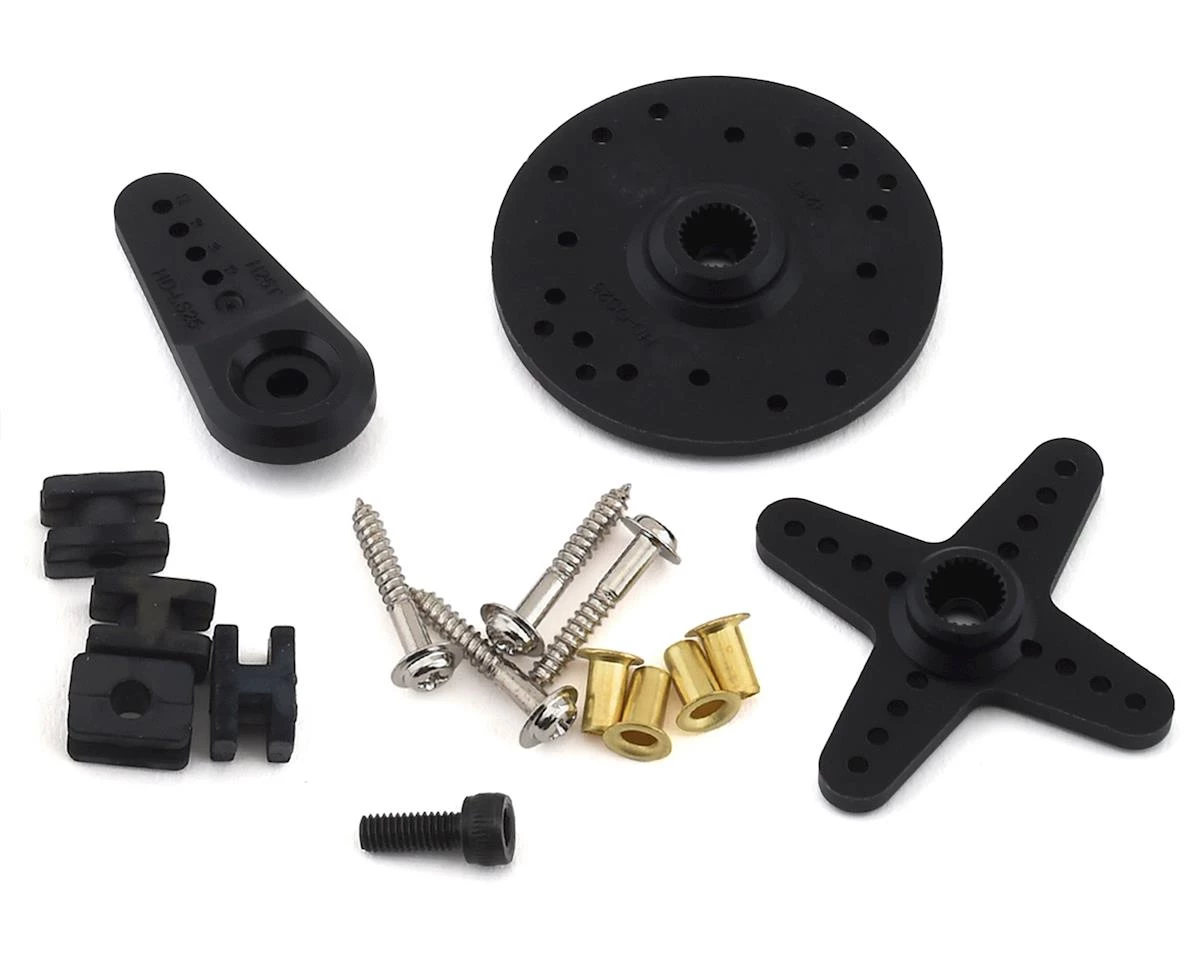

• Applicable Horns & Screws

Operating Voltage Range (Volts DC): 4.8V ~ 7.4V

Speed (Second @ 60°): 0.11 ~ 0.07

Maximum Torque Range oz./in.: 112 ~ 182

Maximum Torque Range kg./cm.: 8.0 ~ 13.0

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 500 mA

Dead Band Width: 1 µs

Dimensions (Inches): 1.57 x 0.78 x 1.46

Dimensions (Metric): 40.0 x 20.0 x 37.0

Weight (Ounces): 2.33

Weight (Gram): 66.0

Circuit Type: 32bit Programable Digital

Motor Type: Coreless Metal Brush

Gear Material: MK 1st Gear & 3 Steel Alloy Gears

Bearing Type: Dual Ball Bearing

Output Shaft (type / Ømm): H25T

Case Material: Plastic/Aluminum

Dust/Water Resistance Splash Proof: Yes

Connector Gauge (AWG)/Strand Count: 20/80
