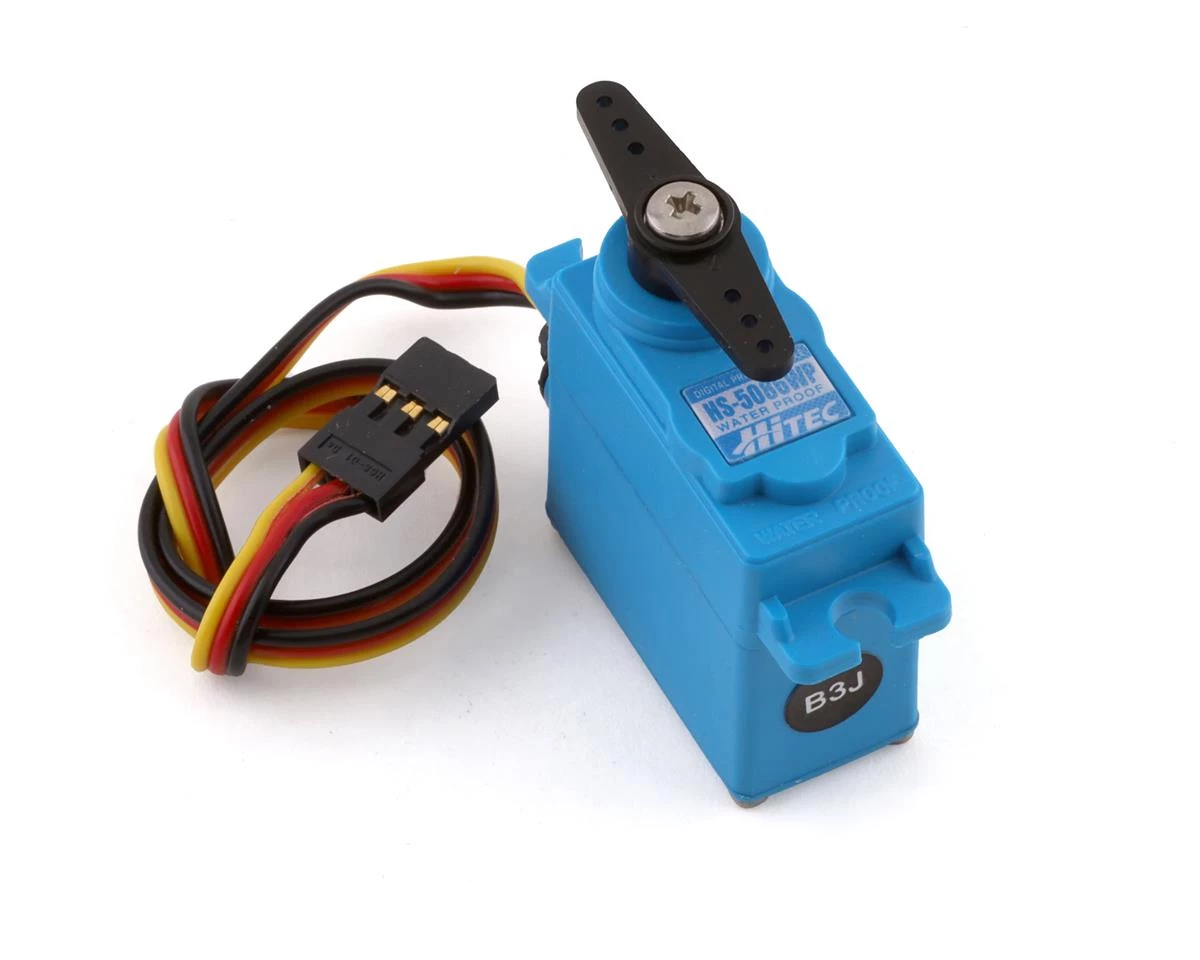

Hitec HS-5086WP Digital Micro Waterproof Metal Gear Servo (High Voltage)

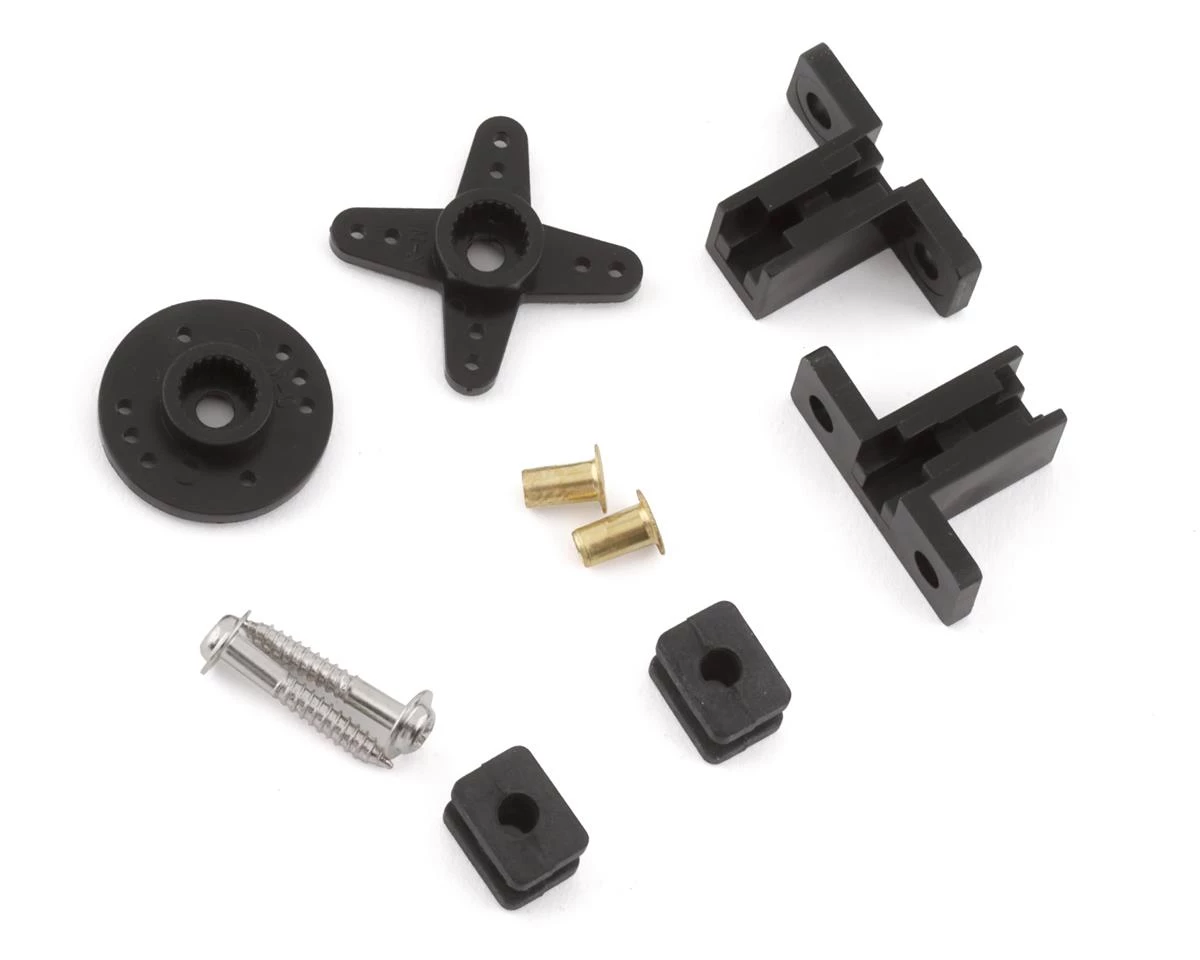

Hitec HS-5086WP Digital Micro Waterproof Metal Gear Servo. This is of the smallest waterproof servos Hitec has to offer. The HS-5086WP is a very durable and reliable micro servo. This servo would be best for a RC vehicle, boat or aircraft. Package includes one servo, two horns and mounting hardware.

Features:

• Metal Gear with MP First Gear
• Top Ball Bearings
• 3-Pole Cored Ferrite Motor
• IP67-Rated Waterproof Case
• Programmable Circuit

Specifications:

• Type: Digital
• Application: RC vehicles, boats and aircraft used in wet conditions
• Voltage: 6.0V-7.4V
• Torque:
• 6.0V: 42 oz-in (3.0 kg-cm)
• 7.4V: 50 oz-in (3.6 kg-cm)
• Speed:
• 6.0V: 0.18 sec/60°
• 7.4V: 0.15 sec/60°
• Length: 1.22 in (31mm)
• Width: 0.60 in (15mm)
• Height: 1.22 in (31mm)
• Weight: 1.0 oz (28 g)
• Bushing Or Bearing: Single Bearing
• Motor Type: 3-pole ferrite
• Gear Type: Metal

This product was added to our catalog on June 29, 2021
