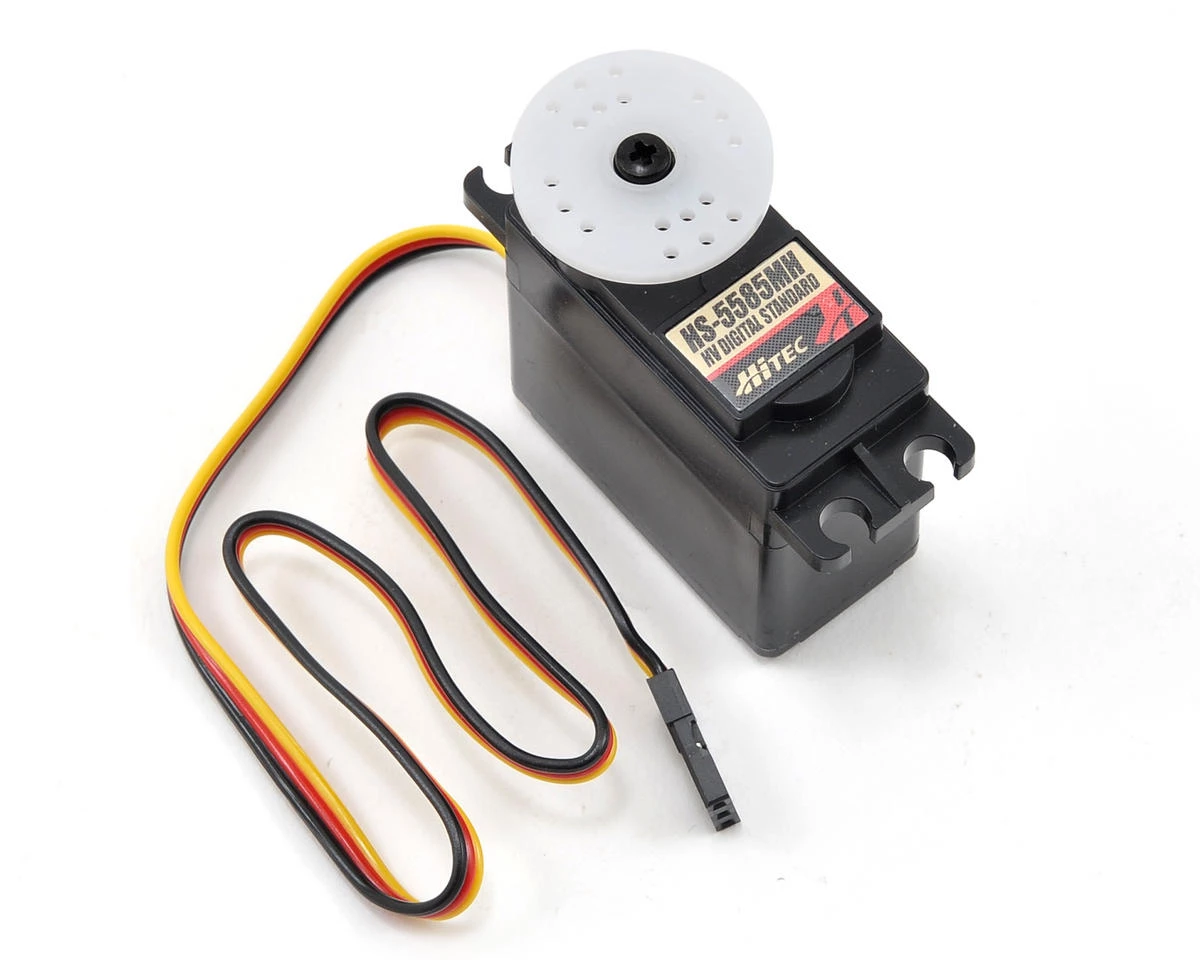

Hitec HS-5585MH Coreless Metal Gear High Torque Digital Servo (High Voltage)

This is the Hitec HS-5585MH Coreless High Voltage Metal Gear High Torque Digital Servo. Increase performance, not your budget with the high voltage, digital HS-5585MH. This premium sport servo features a coreless motor, heavy-duty metal gears and dual ball bearings. Rated at 7.4 volts for 2S LiPo operation, it provides the durability and power your RC hobby demands. The HS-5585MH supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.

Specifications:
Size Category: Standard
Type: Digital
Application: 1/10th monster trucks, 1/8th buggies and truggies; high performance aircraft up to 35 percent
Torque: 194 oz-in (14 kg-cm) @ 6.0V; 236 oz-in (17 kg-cm) @ 7.4V
Speed: 0.17 sec/60° @ 6.0V; 0.14 sec/60° @ 7.4V
Length: 1.57 in (39.8mm)
Width: 0.78 in (19.8mm)
Height: 1.49 in (37.8mm)
Weight: 2.10 oz (60 g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Connector Type: Universal
Gear Type: Metal
Voltage: 6.0V-7.4V

Advanced Servo Specifications:
Control System: Standard HV Digital
Operating Voltage Range: 6.0 – 7.4 Volts DC
Operating Temperature Range: -4° – 140° Fahrenheit
Idle Current: 4 mA
Stall Current (6.0V/7.4V): 2100 / 2700 mA
Dead Band Width: 2 µs
Potentiometer Type: 4 Slider 1M Cycle
Connector Wire Length: 11.8 in. / 300 mm.
Connector Wire Gauge: 25 AWG

This product was added to our catalog on March 28, 2012
