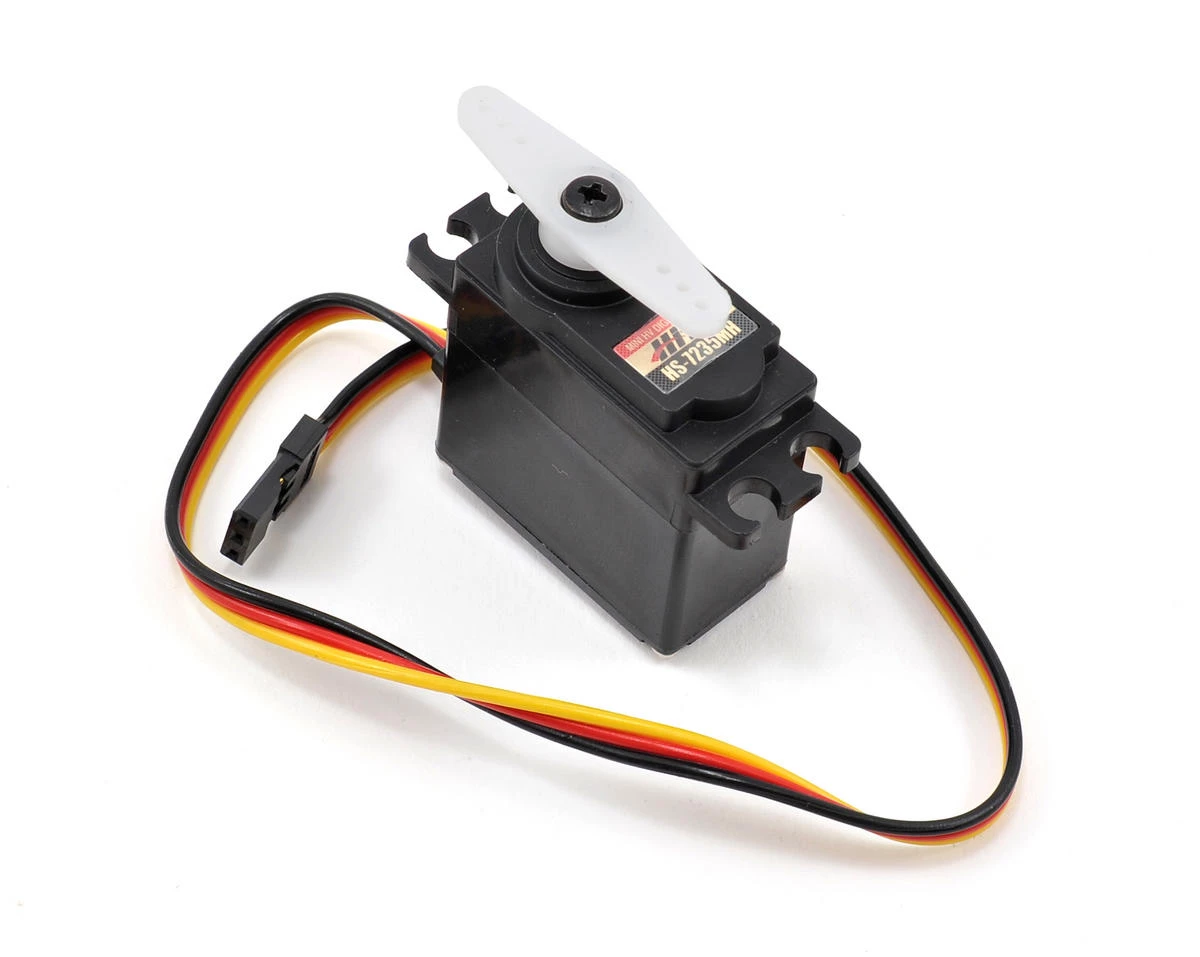

Hitec HS-7235MH Hi-Voltage “Hi-Speed” Metal Gear Digital Mini Servo

This is the Hitec HS-7235MH Hi-Voltage “Hi-Speed” Metal Gear Digital Mini Servo. The high voltage, coreless HS-7235MH servo delivers exceptional speed in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance. Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the lightning speed of this servo will deliver the speed your looking for.

Specifications:
Size Category: Minis and Micros
Type: Digital
Application: .40 to .60-sized glow and electric planes; 500-550 electric helis; 1/12 scale on-road and 1/18 scale rock crawlers
Torque: 50 oz-in (3.6 kg-cm) @ 6.0V; 61 oz-in (4.4 kg-cm) @ 7.4V
Speed: 0.09 sec/60° @ 6.0V; 0.08 sec/60° @ 7.4V
Length: 1.28 in (32.4mm)
Width: 0.66 in (16.8mm)
Height: 1.29 in (32.8mm)
Weight: 1.20 oz (34.0 g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Connector Type: Universal
Gear Type: Metal
Voltage: 6.0V-7.4V

This product was added to our catalog on May 15, 2012
