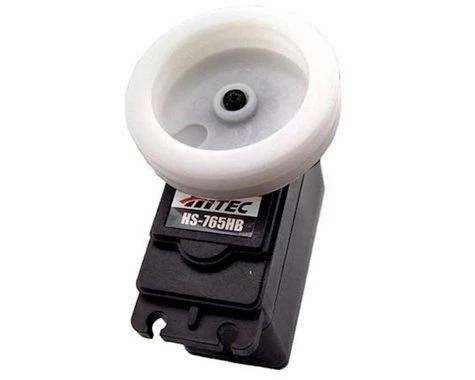

Hitec HS-765HB Universal Sail Arm Analog Servo

The HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters.

Key Features:

• Up to 140 degrees of travel
• 4.5 inch arm
• Dual Ball Bearing Supported Output Shaft
• *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail

Specifications:

• Size Category: Specialty
• Type: Analog
• Application: Sailing
• Torque: 153 oz-in (11.0kg-cm) @ 4.8V; 183 oz-in (13.2kg-cm) @ 6V
• Speed: 0.28 sec/60 deg @ 4.8V; 0.23 sec/60 deg @ 6V, at no load
• Length: 2.32 in (59.0mm)
• Width: 1.14 in (29.0mm)
• Height: 1.97 in (50.0mm)
• Weight: 3.88 oz (110g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: 3 Pole
• Connector Type: Universal
• Gear Material: Karbonite
• Current Draw Idle: 8mA
• Current Draw Stall: 1500mA @ 4.8V; 1800mA @ 6V
• Voltage: 4.8V to 6.0V
• Deadband: 5µs

This product was added to our catalog on July 2, 2020
