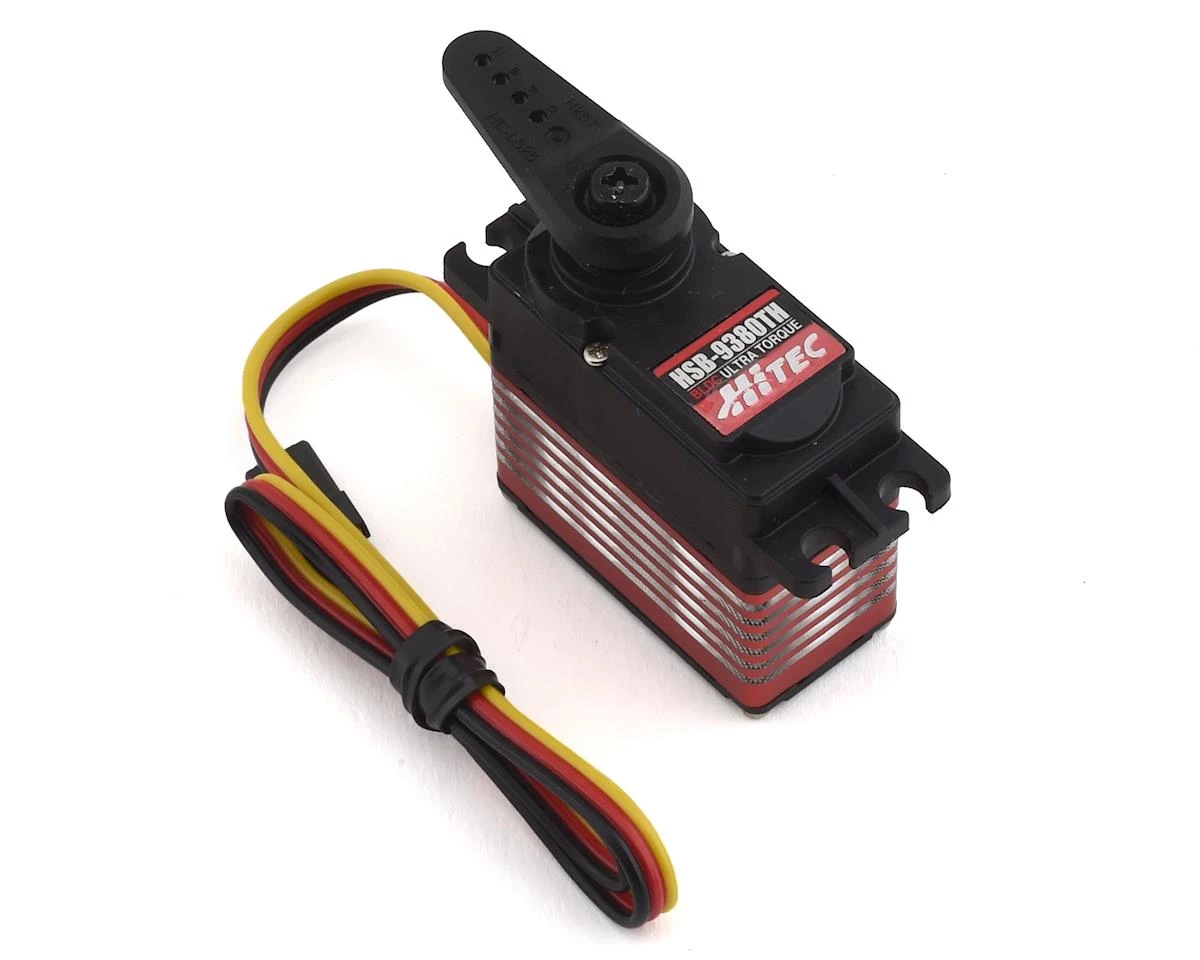

Hitec HSB-9380TH Ultra Torque Brushless Titanium Gear Servo (High Voltage)

The Hitec HSB-9380TH Ultra Torque Brushless Titanium Gear Servo features an ultra-efficient brushless motor, titanium gears, low current consumption and constant output power. This makes the HSB-93XX series of servos a great choice for discriminating pilots and racers.

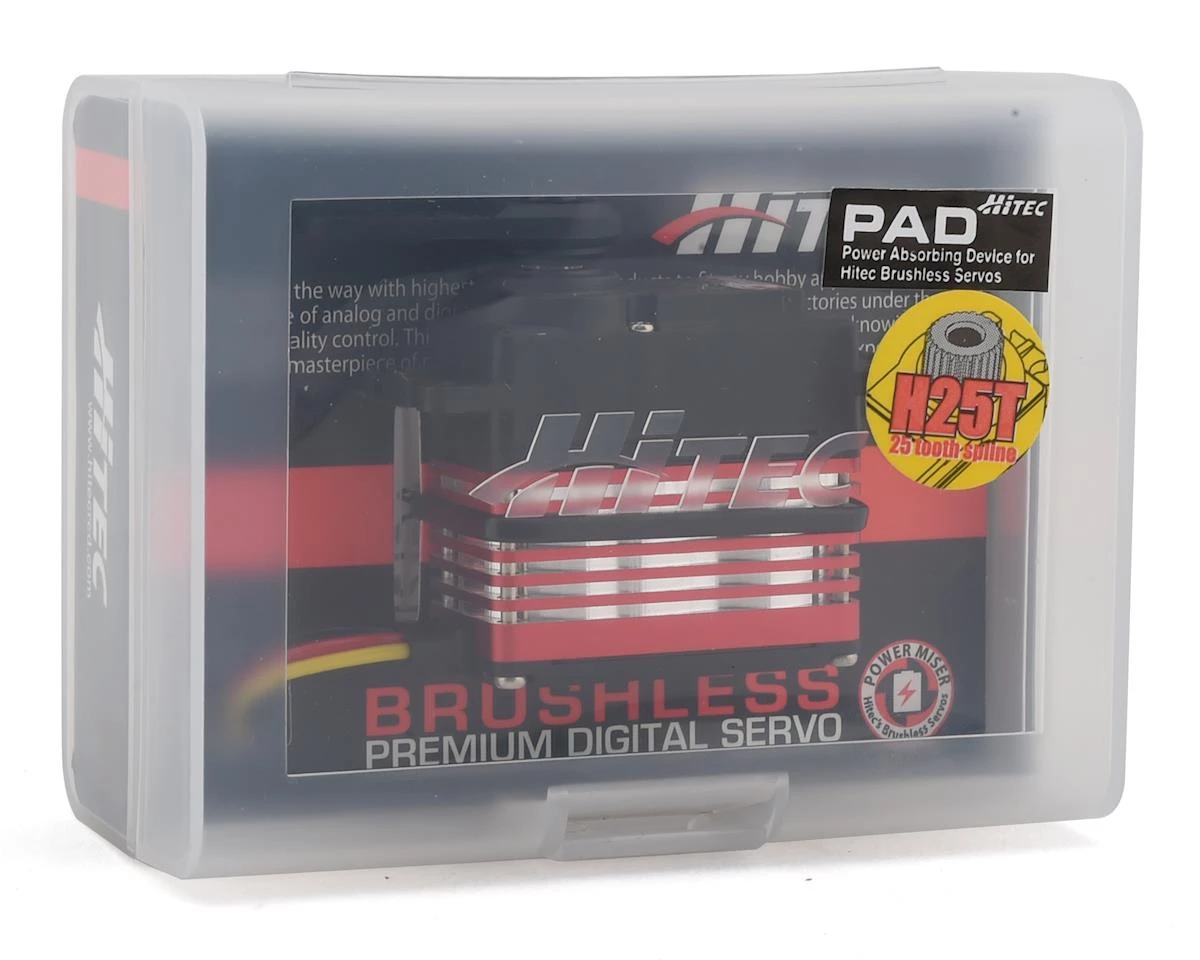

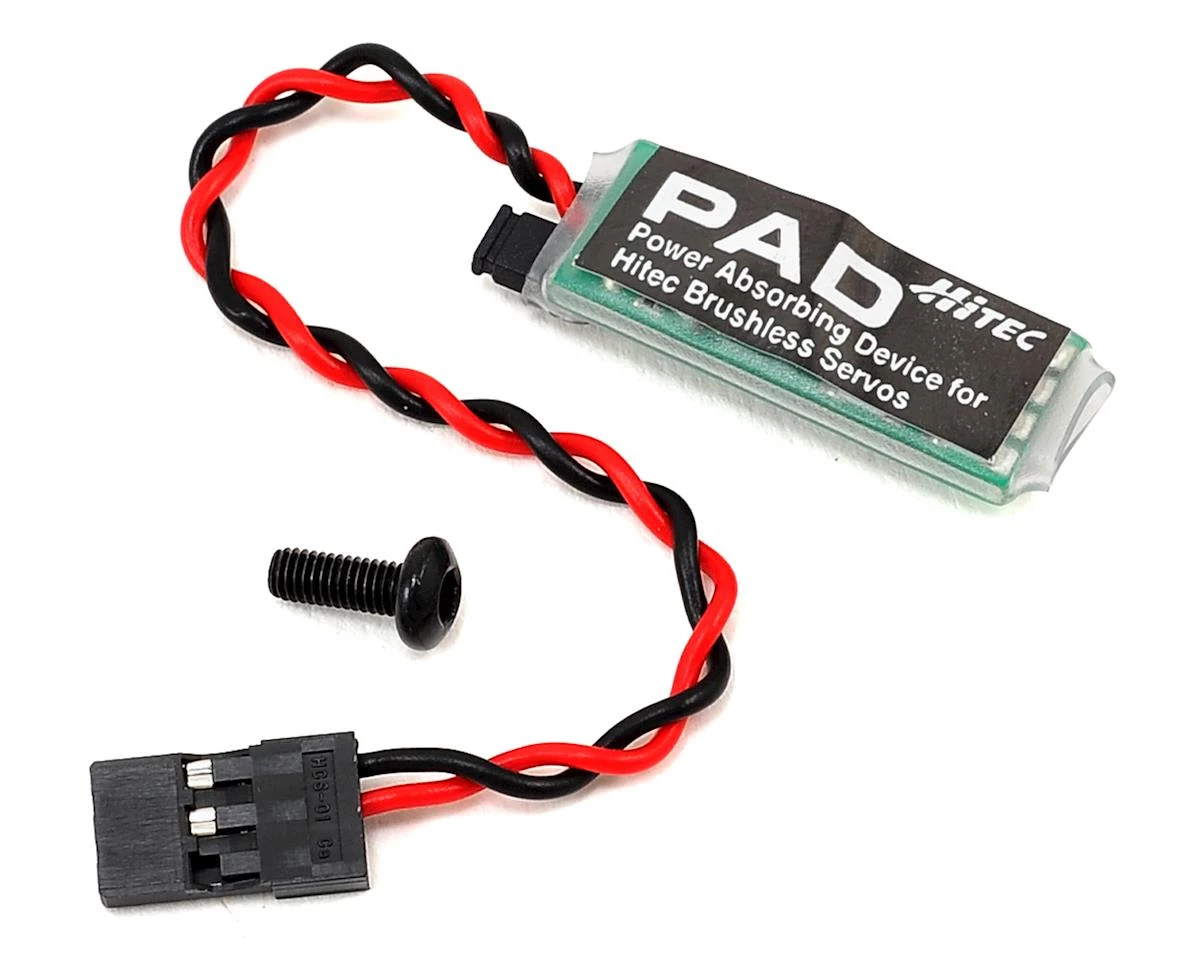

NOTE: While compatible with most radio control devices, the regenerative braking feature of the HSB-9XXX series servos may cause a problem if the device cannot accept a backflow of current. The types of devices that cannot accept this backflow are: Voltage Regulators, Power Safe Receivers and certain BEC circuits whether stand alone or integrated within an Electronic Speed Control. Check with the manufacturer or the Hitec website for a list of compatible models. If your device cannot accept a current backflow, then you must install a PAD (Power Absorbing Device – HRC55756) as described in the manual. A PAD is included with every Hitec brushless servo.

Features:

• Programmable 12-Bit PWM Digital Amplifier
• Custom Long Life Brushless Motor
• 1M Cycle Long Life Potentiometer
• Constant Output Torque
• Wide Operating Voltage (5 ~ 9 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• Dust Resistant and Splash Proof Case
• 25-Tooth Output Spline
• Hybrid Nylon Reinforced Plastic and Aluminum Case
• Low Power Consumption

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Data Save / Load
• Program Reset (From File)

Specifications:

• Performance:
• Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.17 ~ 0.14
• Maximum Torque Range oz. / in.: 472
• Maximum Torque Range kg. / cm.: 34
• Current Draw at Idle: 27 mA
• No Load Operating Current Draw: 250 mA
• Stall Current Draw: 2,100 mA
• Dead Band Width: 1 µs
• Physical Specifications:
• Dimensions (Inches): 1.57 x 0.79 x 1.50
• Dimensions (Metric): 40.0 x 20.0 x 38.0
• Weight (Ounces): 2.4
• Weight (Gram): 68.0
• Circuit Type: EBL Digital
• Motor Type: Brushless
• Gear Material: Titanium
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: Splash Proof
• Connector Gauge (AWG) / Strand Count: 20 / 80
• Applications:
• Parkflyer: N / A
• Sport Plane: > 40%
• Sailplane: 2 meters and up
• 3D Performance: > 40%
• Scale: > 40%
• Electric Helicopter: N / A
• Gas Helicopter: N / A
• On Road: N / A
• Monster Truck: 1/8th
• Buggies: 1/8th
• Truggies: 1/8th
• Short Course / Truck: 1/8th
• Crawlers: N / A
• Sail Boat: = >1M & Scale
• Power Boat: 1/10th

This product was added to our catalog on October 5, 2018
