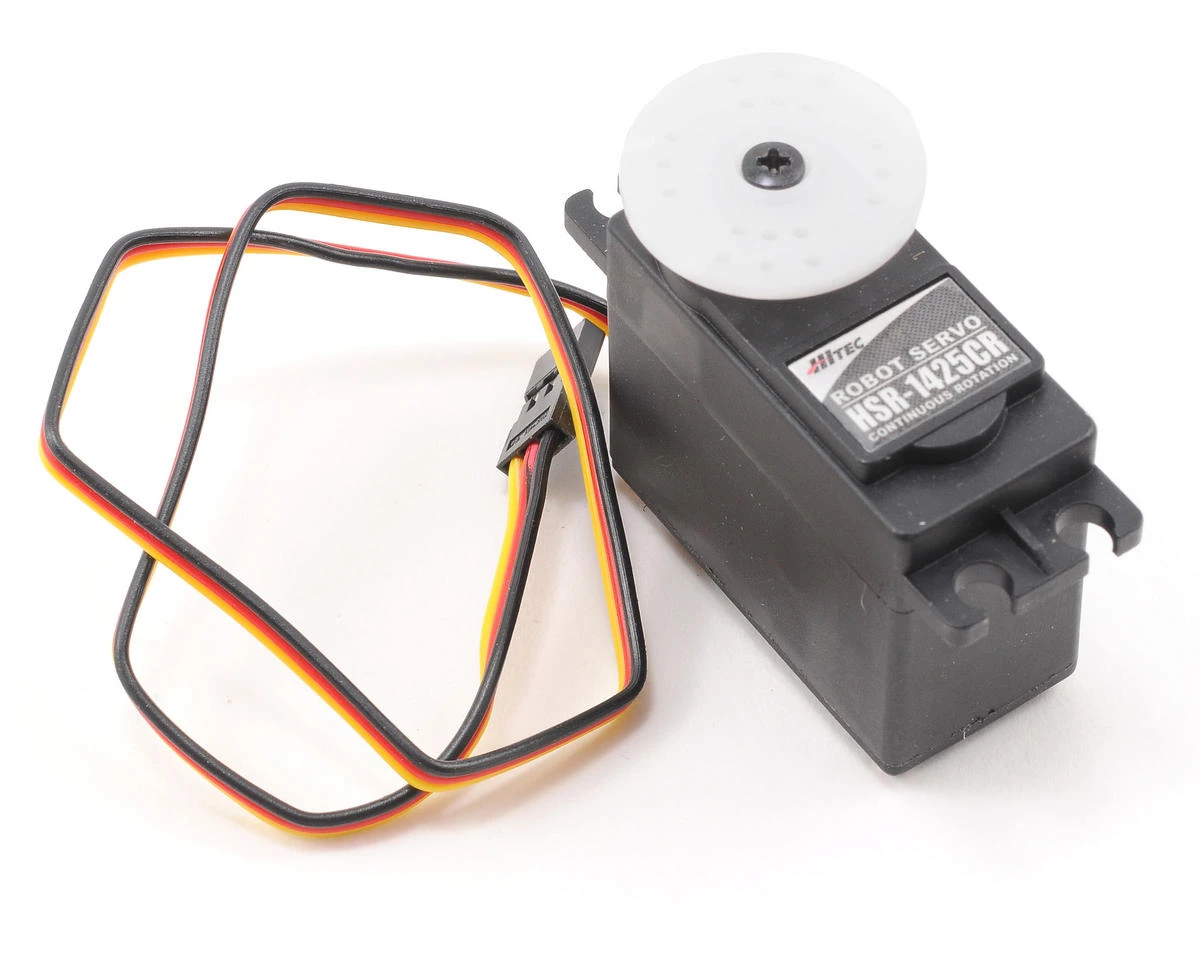

Hitec HSR-1425CR Continuous Rotation Robot Servo
Original price was: $21.99.$13.19Current price is: $13.19.
- Quality Meets Affordability
- 100% High-Quality Guarantee
- Multiple payment methods, 100% payment security
- Free Shipping Worldwide
The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425HB ideal for robotic applications. This servo has a universal type connector.
Specifications:
Operating Voltage Range (Volts DC):Â 4.8V ~ 6.0V
Speed (RPM):Â 43 ~ 52
Maximum Torque Range oz. / in.: 39 ~ 47
Maximum Torque Range kg. / cm.: 2.8 ~ 3.4
Current Draw at Idle:Â 8 mA
No Load Operating Current Draw:Â 150 mA
Stall Current Draw: 640 mA
Dead Band Width: 10 µs
Dimensions (Inches): 1.59 x 0.77 x 1.44
Dimensions (Metric):Â 40.6 x 19.8 x 36.6
Weight (Ounces): 1.47
Weight (Gram):Â 41.7
Circuit Type:Â HT7003 Analog SMT
Motor Type:Â 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type:Â Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material:Â Plastic
Connector Gauge (AWG) / Strand Count:Â 25 / 40
This product was added to our catalog on November 6, 2008
