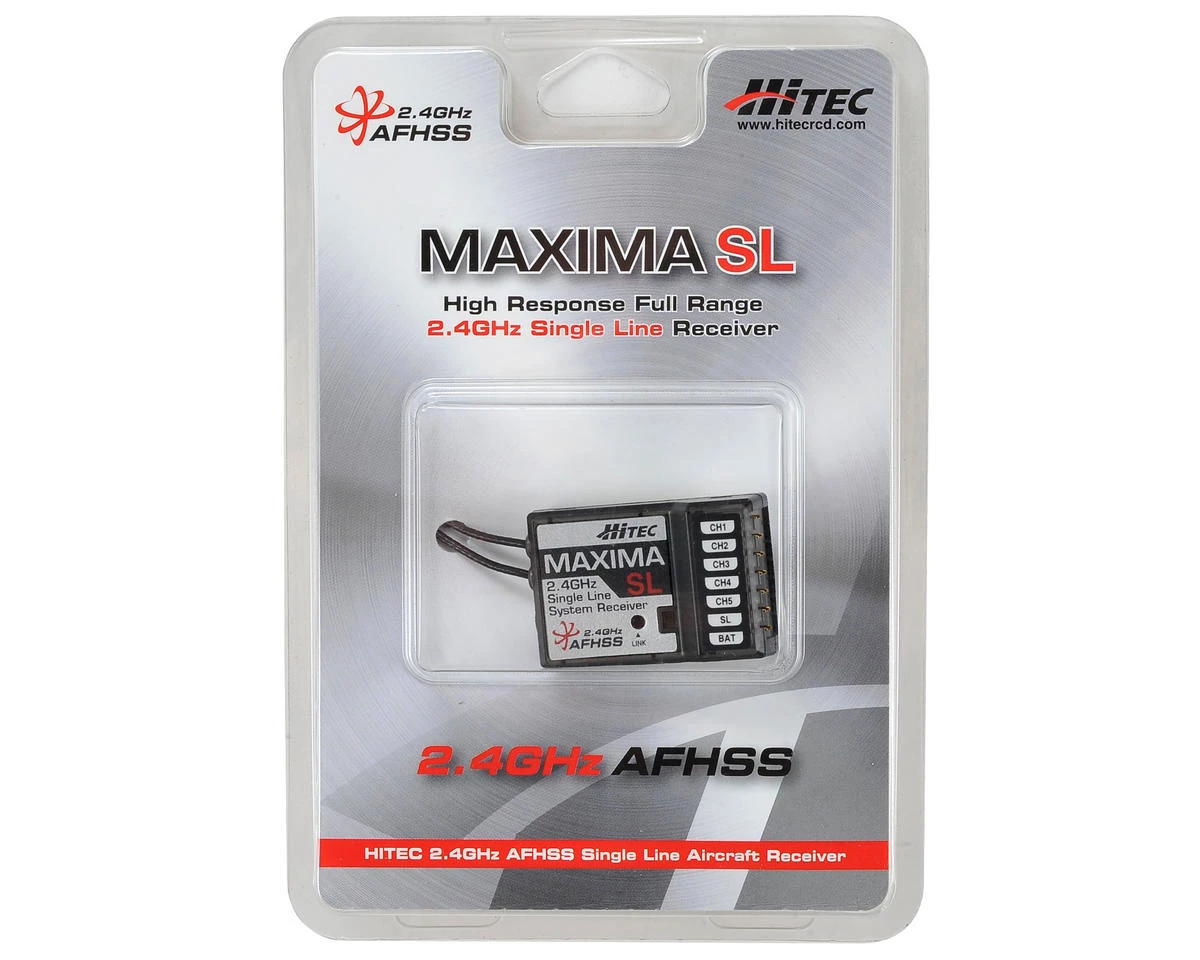

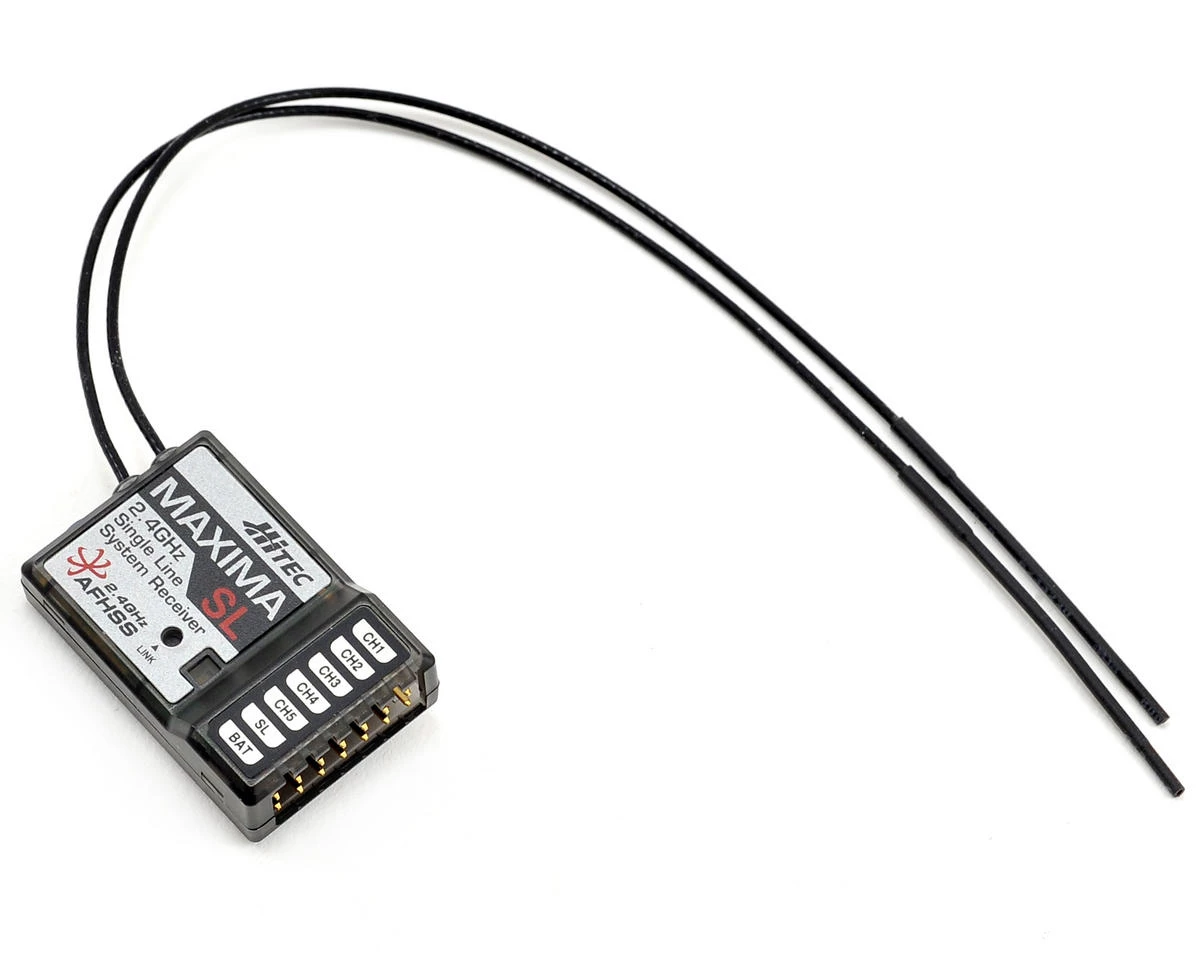

Hitec Maxima SL 2.4GHz Receiver

This is the Hitec Maxima SL 2.4GHz Receiver. Engineered to provide unsurpassed reliability, the Maxima SL 2.4GHz single line, low latency receiver has 4096 resolution and an incredibly quick 7ms frame rate. Designed to work with most S-Bus compatible flybarless systems and the Hitec Aurora 9X and Flash series transmitters, the Maxima SL is one dynamo of a micro receiver.

Features:

• 4096 Resolution
• Full Range Operation
• Dual Antennas (Non-BODA)
• Utilizes S-Bus Protocol for Maximum
• Compatibility with most Flybarless Systems
• Low Voltage Consumption
• Fail Safe/Hold Function
• 1 S-Bus & 5 PWM Outputs

Tech Notes: Hitec designates this as “9 Channel”, and only supports the full 9 channels via S.Bus protocols. Receiver features 5 standard channel inputs for conventional usage.

Specifications:
Dimensions: 37×24.8×11.2mm (1.45×0.97×0.44″)
Weight: 7.8g (0.27 oz.)
Operating Voltage: 3.7 – 9.0V
Max Current Consumption: 30mA

This product was added to our catalog on June 11, 2015
