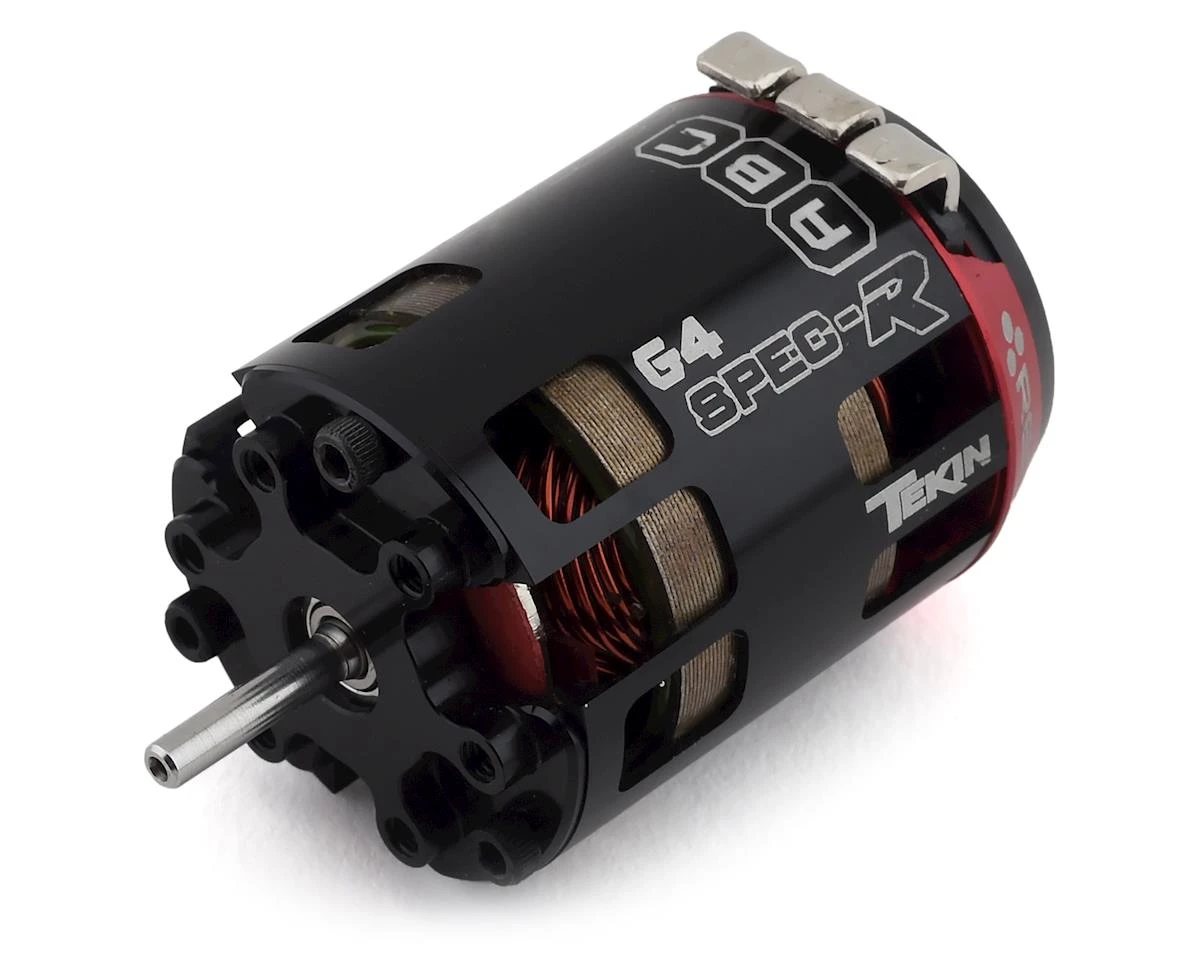

Tekin Gen4 Spec-R Sensored Brushless Motor (25.5T)

The Tekin Gen4 Spec-R Sensored Brushless Motor has been engineered for performance. Utilizing the best materials available the SPEC-R has been redesigned to cut weight and reduce resistance, resulting in a purebred Spec racing machine. On Road or Off, the SPEC-R handles all disciplines, providing smooth power and control across the full RPM range. The SPEC-R is competition performance with the speed you need to win.

The GEN4 motor line features a redesigned, precision stamped and pressed stator to increase efficiency and reduce resistance. The stators are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. The motors can be tuned with optional rotors and are re-buildable, making the GEN4 SPEC-R motor a premium performance power plant designed for the serious racer.

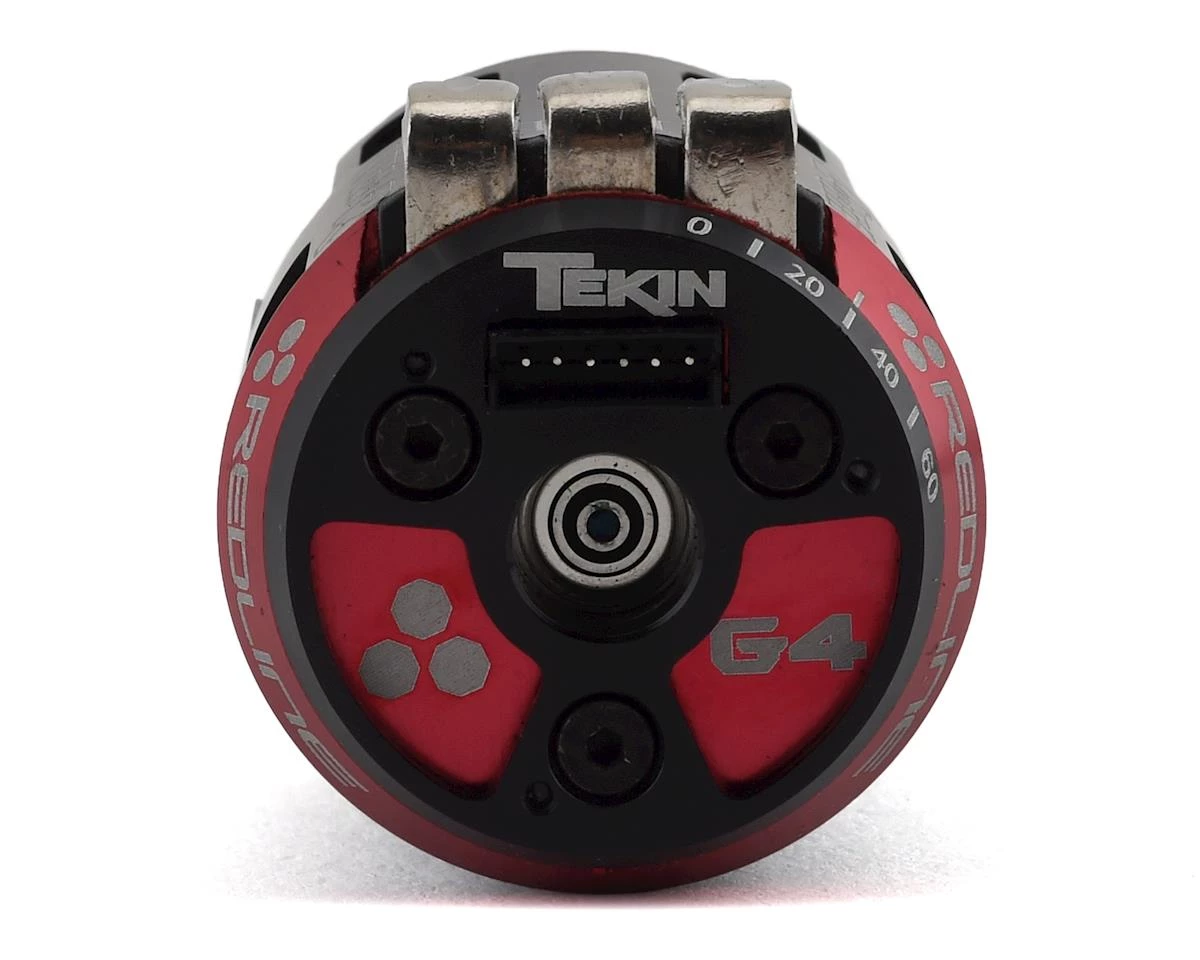

• 60 Degrees Adjustable Timing Advance
• SPEC Racing Specific Design
• CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
• Neodymium Sintered Magnet
• Precision Engineered for Maximum Energy Conversion
• High Purity Copper Windings Maximize Conductivity
• Low Resistance, High Power Solder Tabs
• Sensored System Ready
• Anodized End-bell Plates Maximize Corrosion and Wear Resistance
• High RPM Precision Bearings
• Oversized Front Bearing
• Rebuild-able Design
• Solder-less Sensor PCB Replacement
• Legal in Major Race Governing Bodies
• ROAR Approved

Input Voltage: 1-2S LiPO – 25.5T / 21.5T / 17.5T / 13.5T / 10.5T / 6.5T

Weight: 5.1oz / 145g

Shaft Dimensions: 3.18mm (1/8″) x 15.3mm

Motor Diameter: 35.85mm / 1.40″

Motor Length: 50.25mm / 1.978″

Max Operating Temperature: 180°F / 82°C

Front: 4x13x5mm

Rear: 1/8×3/8×5/32″

12.3mm BLACK – 25.5T, 12.5mm BLUE – 21.5T / 17.5T / 13.5T / 10.5T

Rebuildable: Yes
