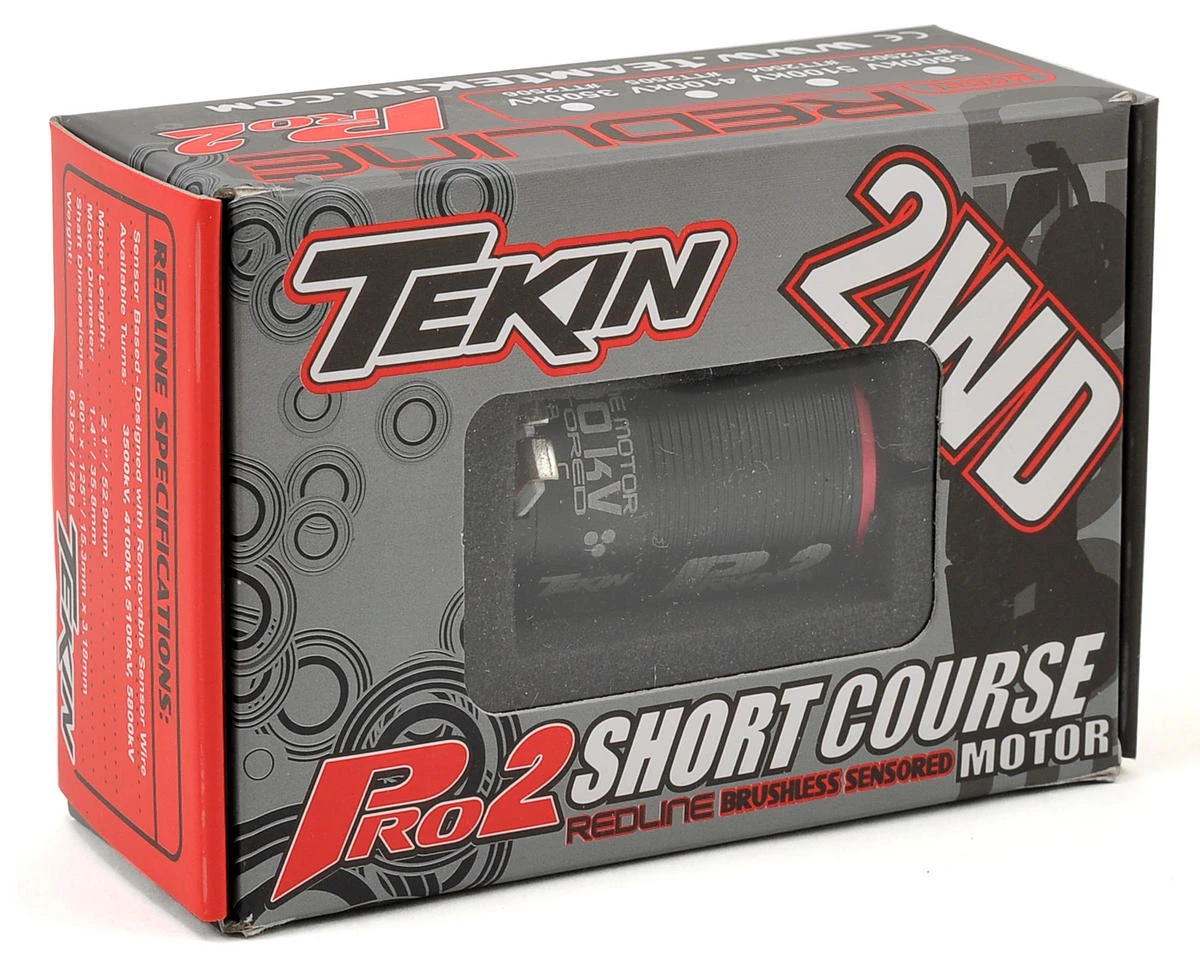

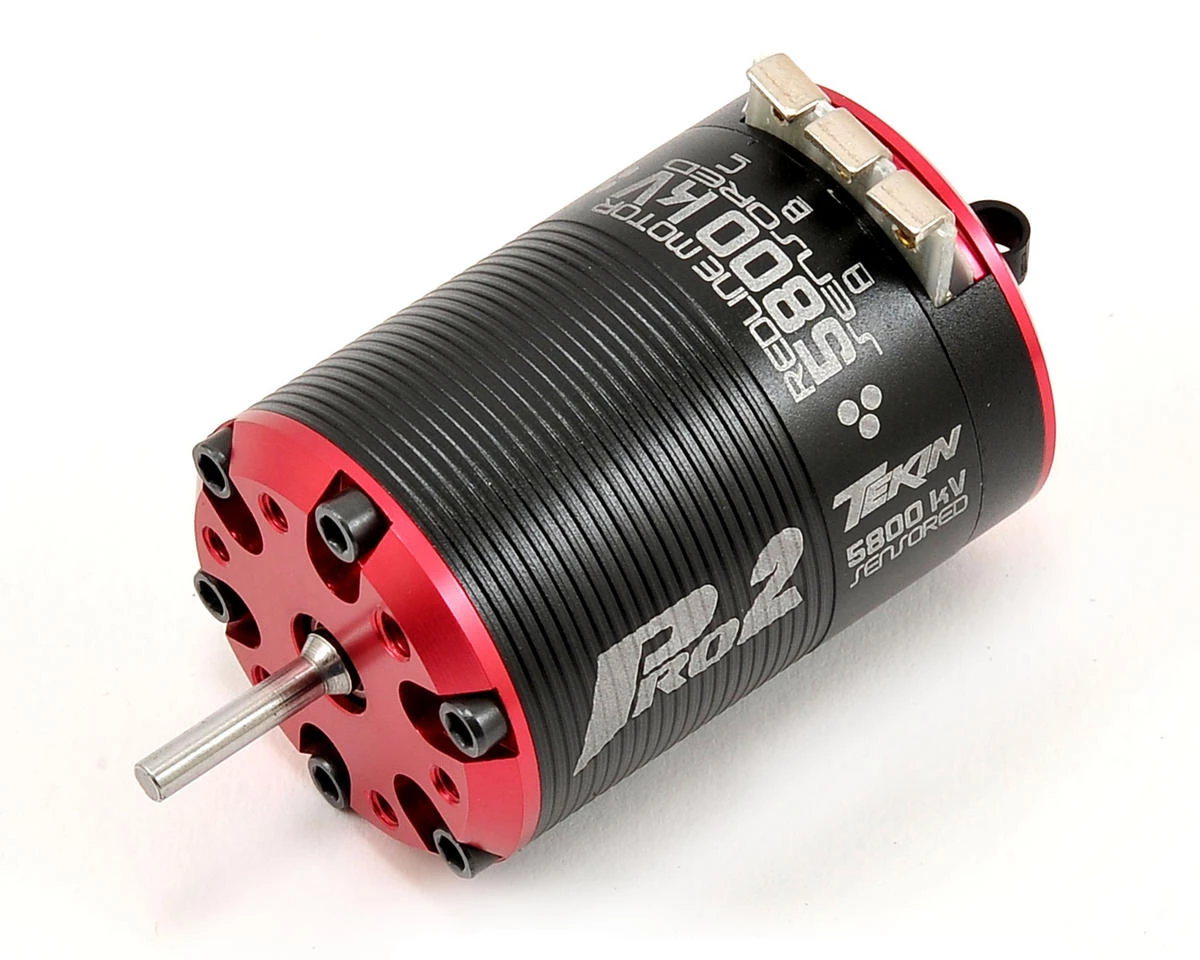

Tekin Pro2 HD 4-Pole Brushless Motor (5,800kV)

This is the Tekin Pro2 HD, 5800kV 4-Pole Brushless Motor. Tekin’s Pro2 Motor is the definition of 2WD Short Course power and control. Specifically designed for use with the RX8 ESC, with kV ranges to accommodate either 2S/3S or 3S LiPo power systems, 2wd Short Course just got more fun. Utilizing the proven design of the T8 1:8th scale motor, the Tekin Pro2 delivers the smooth power and torque you demand for 2WD Short Course. No other 1/10 scale motor on the market can deliver 2WD power like the Pro2. Get a Tekin Pro2 motor and never look back!

Features:

• Designed to be paired with the RX8 Electronic Speed Control
• 4 Pole 12 Slot Hi-torque Motor Design
• CNC Machined 6061 T6 Billet Aluminum Heatsink Can
• Neodymium Sintered Magnets
• Rebuildable Design
• High Purity Copper Windings Maximizes Efficiency
• Precision Engineered for Maximum Energy Conversion

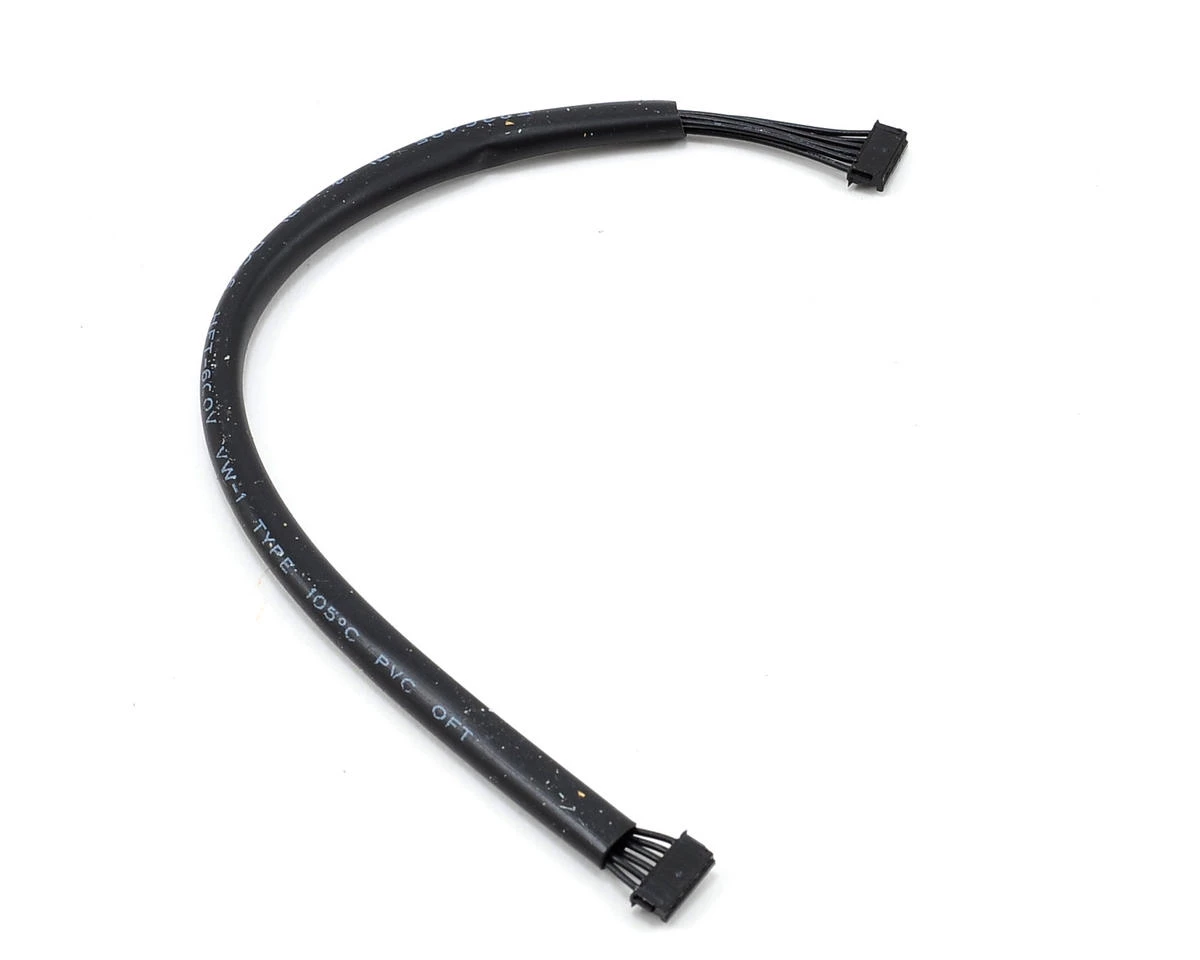

• Dual-Plug Sensor Wire Harness for use with all sensored systems
• High RPM ABEC5 Oversized Bearings

Specifications:
Turns: 1Y
Voltage: 2S – 7.4V
kV: 5800
Rotor: 16.5mm
Weight: 6.3oz / 179g
Shaft Dimensions: .60x.125″ / 15.3×3.18mm
Motor Diameter: 1.4″ / 35.8mm
Motor Length: 2.1″ / 52.9mm
Bearing Dimensions: Front: 5x14x5mm / Rear: 5x11x5
