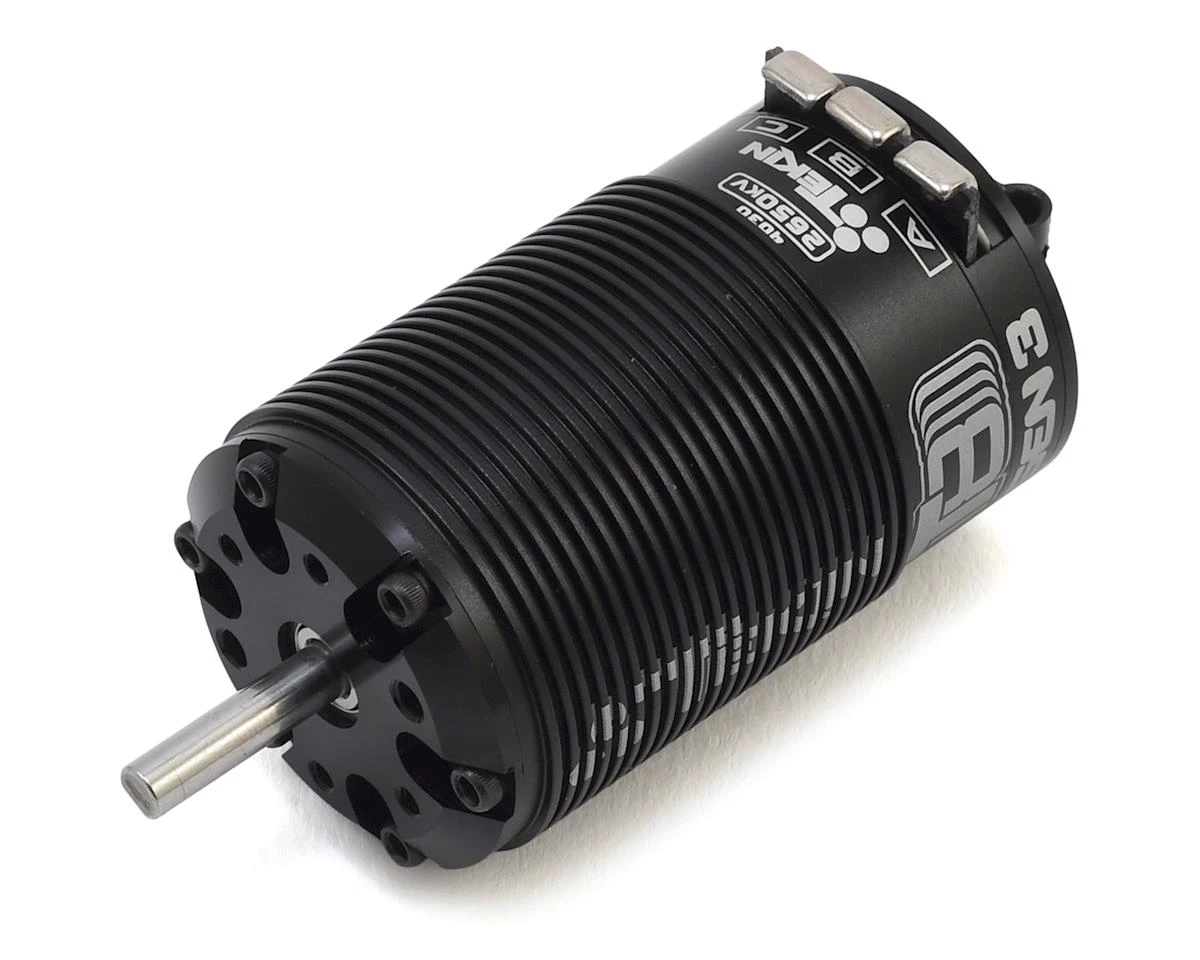

Tekin Redline T8 GEN3 4030 1/8 Buggy Brushless Sensored Motor (2650kV)

This is the Tekin Redline T8 GEN3 4030 Can Brushless Sensored Motor, made specifically for 1/8 Buggy use. Tekin’s T8 GEN3 racing motors are racing performance defined. With a stronger rotor, updated stack features and lower resistance, the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 (TEKTT2302) utilizing Tekin’s D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3.

Features:

• CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
• Matte Anodized for Maximum Corrosion Resistance
• ​Sensored and Sensorless Operation
• ​Low Resistance HD Solder Tabs
• ​Rebuildable Design
• ​Solderless Sensor PCB Replacement
• ​4-Pole Neodymium Sintered Magnet

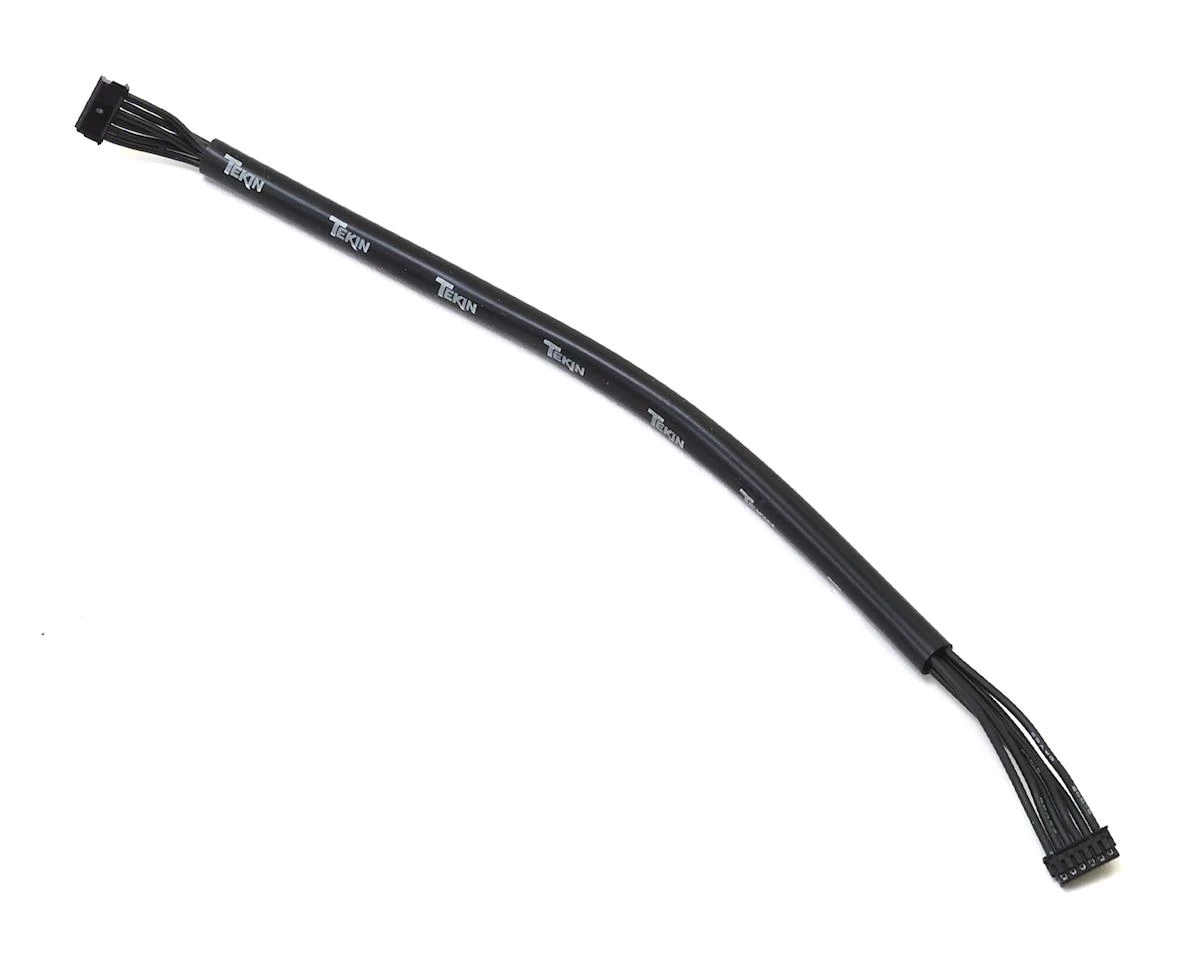

• ​Dual-Plug Sensor Wire Harness
• ​ABEC5 Precision High Speed Oversized Bearings
• ​Precision Engineered for Maximum Energy Conversion
• ​Designed to be paired with the RX8 GEN3 ESC
• ​ROAR Approved

Recommended Applications:

• OFF-ROAD
• 1/8 4WD Buggy
• ​1/8 4WD Truggy
• 1/8 4WD Monster Truck
• ON-ROAD
• 1/8 4WD GT
• 1/8 4WD GP

Specifications:

• Input Voltage: (recommended kV for each popular voltage)
• 4S: 2650kV / 2050kV / 1900kV
• 5S: 1700kV / 1400kV
• 6S: 1400kv
• Weight: 311g / 11oz
• Shaft Dimensions: 5mm (.125″) x 19mm
• Motor Diameter: 40mm / 1.57″ (42mm / 1.65″ including fin)
• Motor Length: 69mm / 2.71″
• Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
• Rotor Size: 18.5mm
• Rebuildable: Yes

This product was added to our catalog on August 8, 2018
