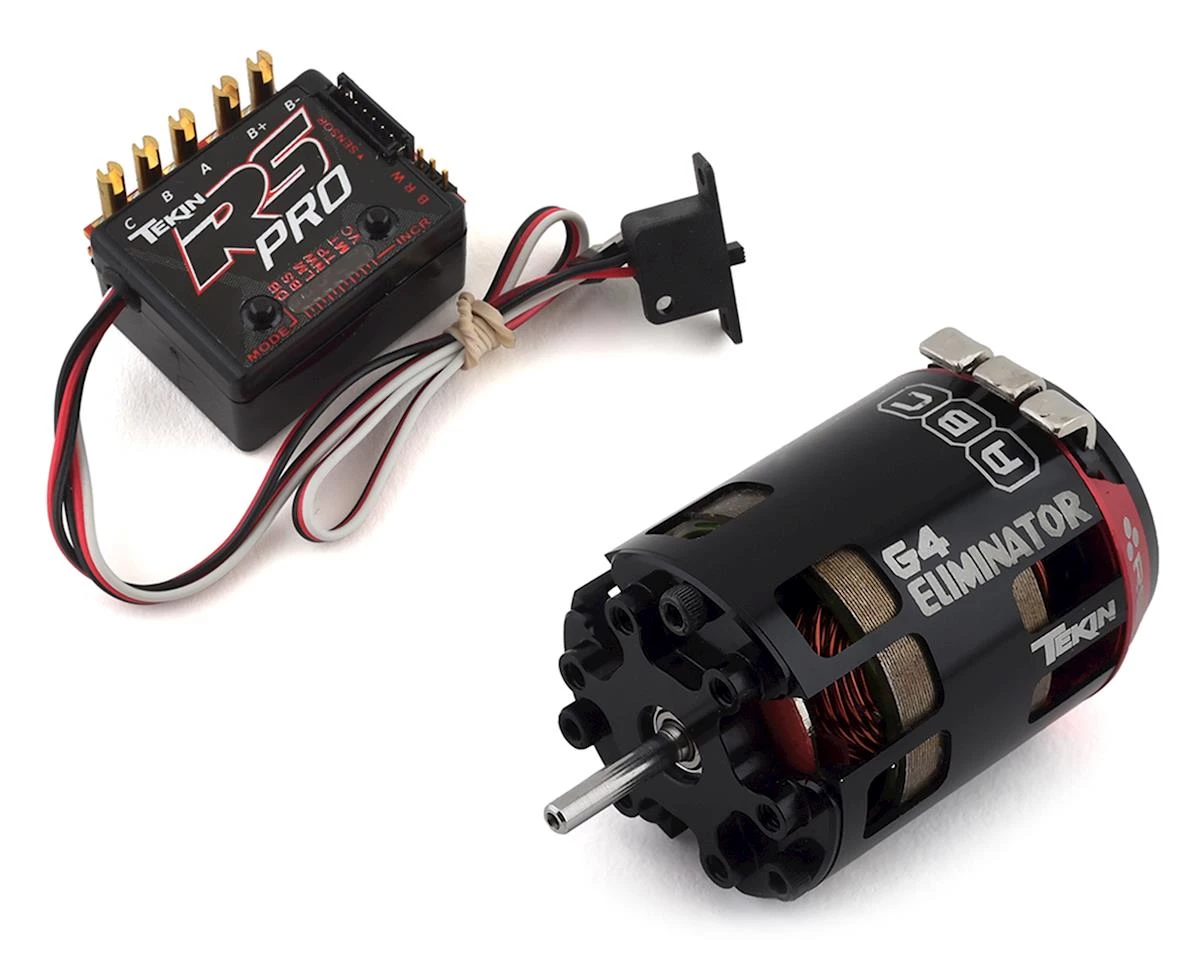

Tekin RS Pro Black Sensored Brushless ESC/Gen4 Eliminator Motor Combo (4.5T)

The Tekin RS Pro Black Edition Sensored Brushless ESC/Gen4 Eliminator Motor Combo is the ultimate choice for racers looking for an ultra low resistance spec racing combo. The Tekin Gen4 Eliminator Drag Racing Modified Brushless Motor is a purpose built Drag Racing motor, engineered for performance. Utilizing Oversized Ultra Torque rotors and the best materials available, Tekin designed the Eliminator to cut weight while reducing resistance, resulting in a purebred Drag Racing machine. From Pro Mod to Street Eliminator classes, the Eliminator motors create huge power across all RPMs whenever you need it. The GEN4 Eliminator is competition performance with the speed and power you need to gap the competition.

The stator is precision stamped and pressed, increasing efficiency and reducing resistance. Every Eliminator motor is hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and fully re-buildable, the GEN4 Eliminator motor is a premium performance power plant for the serious drag racer.

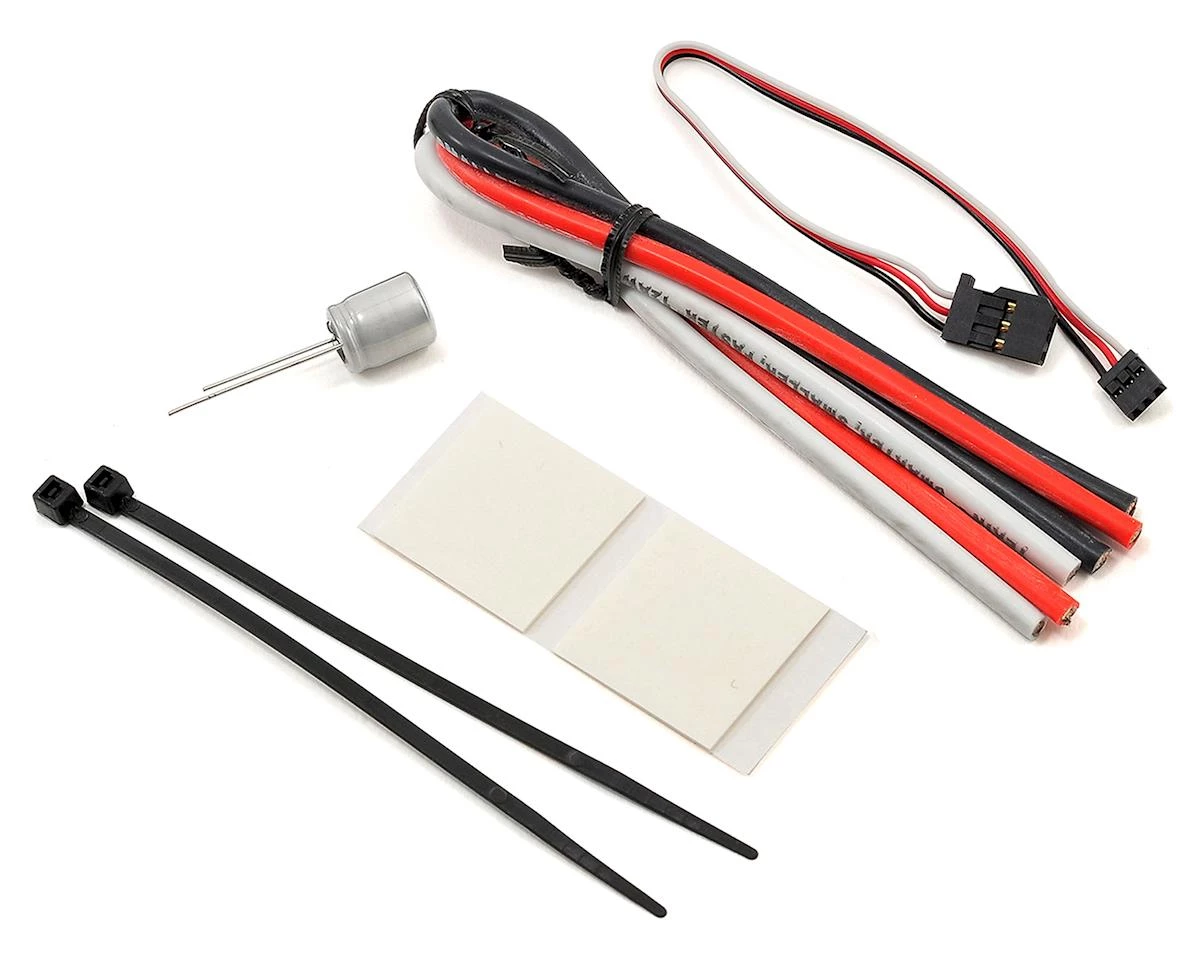

The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC.

Features:

• ULR: Ultra Low Resistance Design
• Specifically Designed for Drag Racing
• QuickTune™ One Touch Programming
• Adjustable Throttle and Brake Frequencies *
• High Voltage Programmable BEC *
• HotWire™ Programming Port *
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• Lightweight Chassis Design
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

*NOTE: requires HotWire™ sold separately.

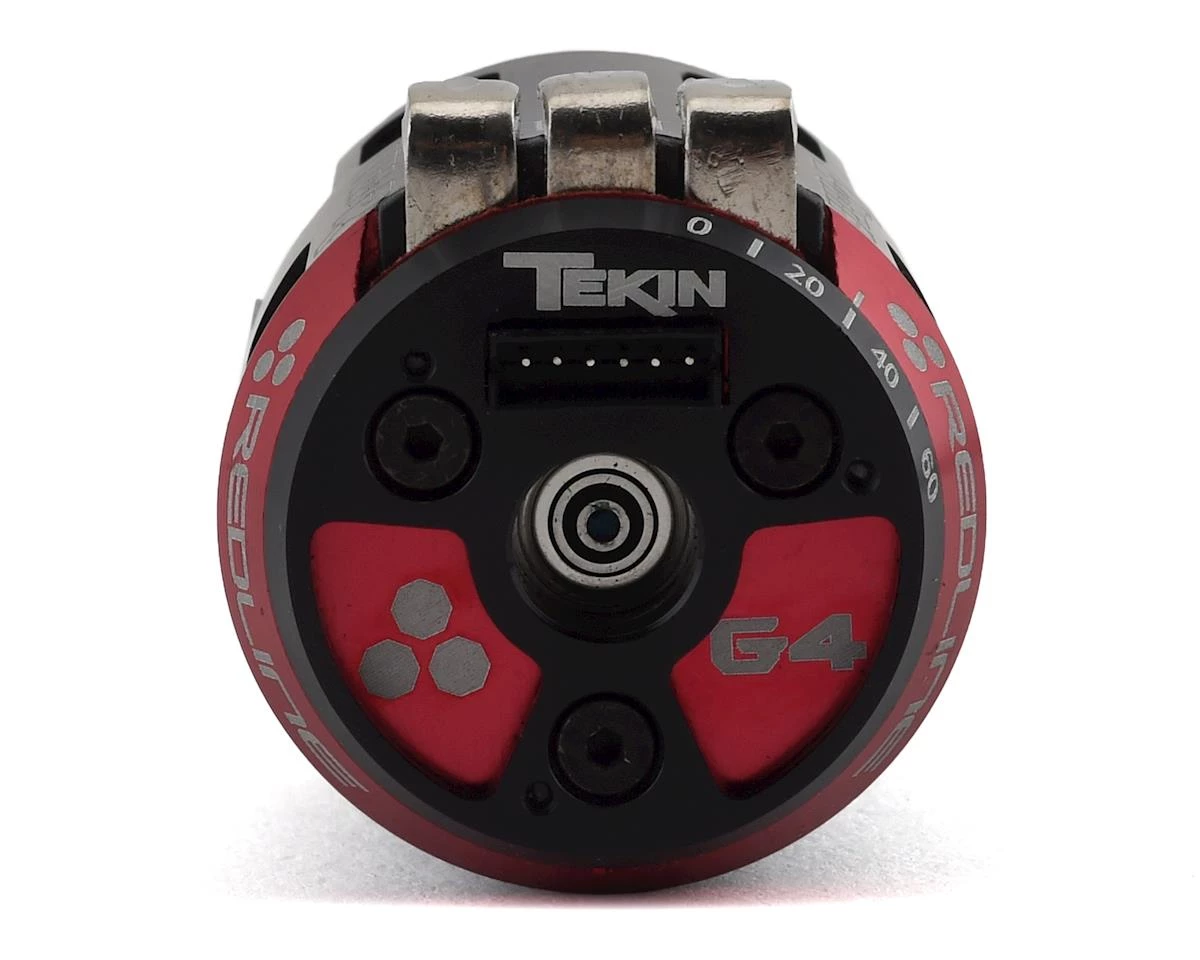

• Motor:
• Input Voltage: 1-2S LiPO – 2.5T / 3.5T / 4.0T / 4.5T / 5.0T
• Weight: 5.1oz / 145g
• Shaft Dimensions: 3.18mm (1/8″) x 15.3mm
• Motor Diameter: 35.85mm / 1.40″
• Motor Length: 50.25mm / 1.978″
• Max Operating Temperature: 180°F / 82°C
• Bearing Dimensions: Front: 4x13x5mm; Rear: 1/8×3/8×5/32″
• Rotor Size: 13mm TORQUE RED
• Rebuildable: Yes
• ESC:
• Controls: Forward/Brake/Reverse
• Input Voltage RS Pro : 1-3S LiPo / 4-9S NiMH-NiCD
• Motor Limit Brushless Mode 2S: 36mm Can – 2-Pole
• Motor Limit Brushless Mode 3S: 36mm Can – 2-Pole
• Motor Limit Brushed 2S: 36mm Can – 540 & 550
• Motor Limit Brushed 3S: 36mm Can – 540 & 550
• Amperage: 480Amps per phase*
• ON Resistance: .000096ohm*
• BEC: 6.0 / 7.4V @ 5.5amps
• Weight: 1.23oz / 35g
• Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm
