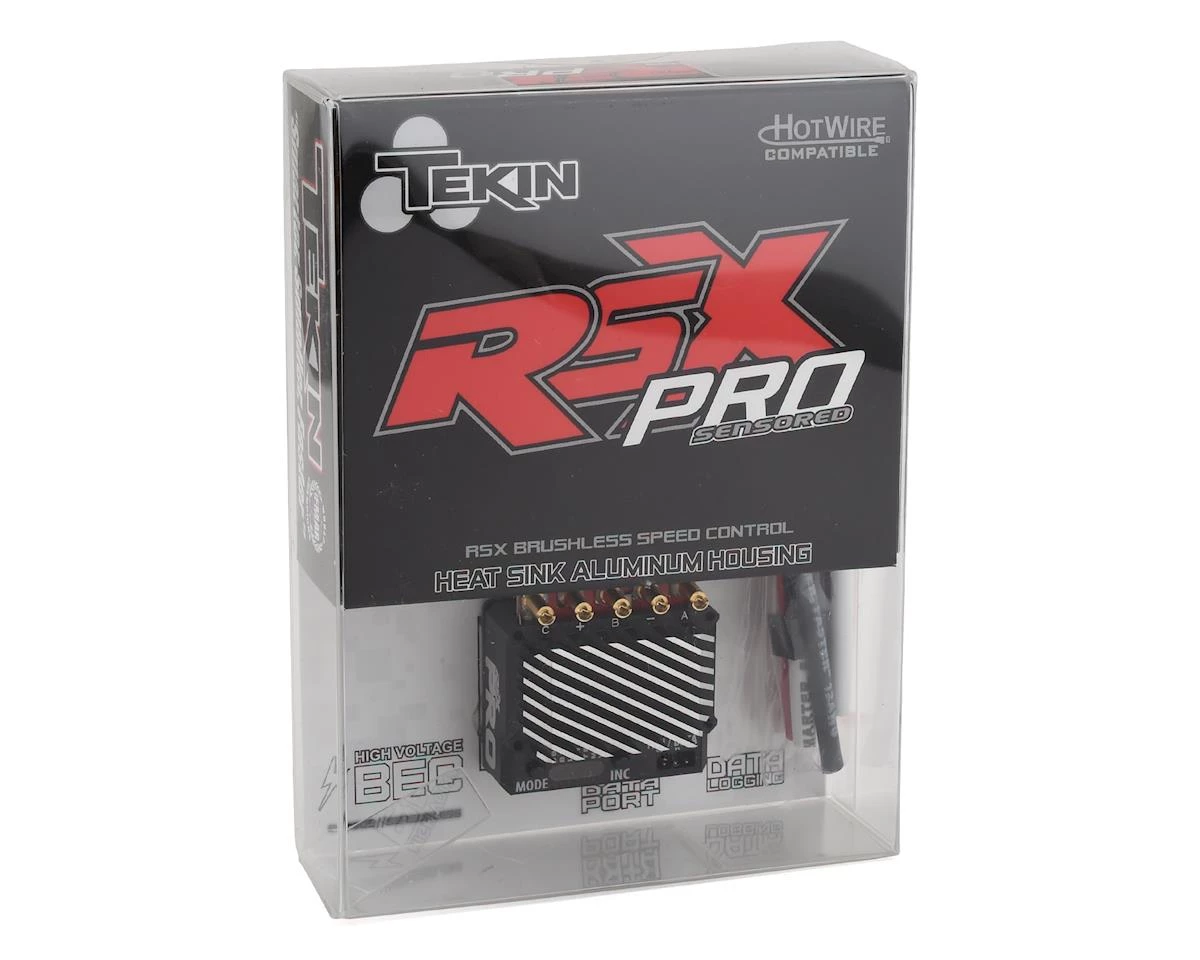

Tekin RSX Pro Sensored Brushless ESC

The Tekin RSX Pro Sensored Brushless ESC is Tekin’s premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, this ESC offers the ability to fine-tune the RSX PRO’s massive power for the win.

Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.

Features:

• Billet 6061-T6 Aluminum Heat Sink Housing
• Redesigned FET Package
• HD Easy Solder Posts
• Optional Shroud and High RPM Cooling Fan
• QuickTune™ One Touch Programming
• Adjustable Torque Control (requires HotWire™ sold separately)
• Adjustable Throttle and Brake Frequencies (requires HotWire™ sold separately)
• HD High Voltage Programmable BEC (requires HotWire™ sold separately)
• HotWire™ Programming Port (requires HotWire™ sold separately)
• On-the-fly Drag Brake Adjustment
• Data Logging Capability (requires HotWire™ sold separately)
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

Specifications:
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-12S NiMH-NiCD
Motor Limit Brushless Mode: 2S –  2.5T 2-pole 36mm Can / 3S –  10.5T 2-pole 36mm Can / 3500kV
Motor Limit Brushed Mode: 2S – 6 Turn 36mm Can / 3S – 12 Turn 36mm Can
Max Current: 210amps per phase*
HV Adjustable BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.21 x 1.43 x .82″ / 31.2 x 37.2 x 21mm
Weight: 1.4oz / 40g
